VLC for Desktop detected as Sony Xperia

Post by Ludo » Tue Jun 06, 2017 10:36 am

I'm testing UMS 6.6.0, for now in virtual machine, and have trouble with correct detection of VLC player. When playing a video file it seems to init transcoding and reporting use of Sony Xperia renderer.

Both host and guest operating systems are Debian 9 and UMS is running in headless mode.

Here's part of console messages

Code: Select all

INFO  18:18:51.276 [main] Checking the fontconfig cache in the background, this can take two minutes or so.
INFO  18:18:51.286 [main] Searching for plugins in /root/ums-6.6.0/plugins
INFO  18:18:51.308 [main] No plugins found
INFO  18:18:51.328 [main] Registering transcoding engine: FFmpeg Audio
INFO  18:18:51.349 [main] Registering transcoding engine: MEncoder
INFO  18:18:51.357 [main] Registering transcoding engine: FFmpeg
INFO  18:18:51.358 [main] Registering transcoding engine: VLC
INFO  18:18:51.369 [main] Registering transcoding engine: FFmpeg Web Video
INFO  18:18:51.374 [main] Registering transcoding engine: MEncoder Web
INFO  18:18:51.374 [main] Registering transcoding engine: VLC Web Video
INFO  18:18:51.376 [main] Registering transcoding engine: tsMuxeR
INFO  18:18:51.377 [main] Registering transcoding engine: Audio High Fidelity
INFO  18:18:51.377 [main] Registering transcoding engine: VLC Web Audio (Legacy)
INFO  18:18:51.379 [main] Registering transcoding engine: VLC Web Video (Legacy)
INFO  18:18:51.379 [main] Registering transcoding engine: dcraw Thumbnailer
INFO  18:18:51.385 [main] Using address /192.168.1.6 found on network interface: name:enp0s3 (enp0s3)
INFO  18:18:51.387 [main] Created socket: /192.168.1.6:5001
INFO  18:18:51.422 [main] WEB interface is available at: http://192.168.1.6:9001
INFO  18:18:51.546 [main] A tiny cache admin interface is available at: http://192.168.1.6:5001/console/home
INFO  18:18:51.593 [mplayer-0] Process mplayer has a return code of 2! Maybe an error occurred... check the log file
INFO  18:18:53.966 [main] Universal Media Server is now available for renderers to find
INFO  18:19:03.854 [StartPlaying Event] Started playing video.mp4 on your Sony Xperia Z/ZL/ZQ/Z1/Z2
INFO  18:19:15.367 [StopPlaying Event] Stopped playing video.mp4 on your Sony Xperia Z/ZL/ZQ/Z1/Z2
debug.log

Code: Select all

DEBUG 2017-06-05 18:31:25.789 [New I/O worker #1] No IP filter specified, access granted to /192.168.1.5
DEBUG 2017-06-05 18:31:25.796 [New I/O worker #1] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on headers {CONNECTION=close, DATE=Mon, 05 Jun 2017 22:31:25 GMT, HOST=192.168.1.6:5001, USER-AGENT=Linux/4.9.0-2-amd64, UPnP/1.0, Portable SDK for UPnP devices/1.6.19+git20160116}
DEBUG 2017-06-05 18:31:25.797 [New I/O worker #1] Reading MediaInfo: true (default: false)
DEBUG 2017-06-05 18:31:25.798 [New I/O worker #1] Reading RendererName: "Sony Xperia Z/ZL/ZQ/Z1/Z2" (default: "Unknown renderer")
DEBUG 2017-06-05 18:31:25.798 [New I/O worker #1] Adding status button for Sony Xperia Z/ZL/ZQ/Z1/Z2
DEBUG 2017-06-05 18:31:25.798 [New I/O worker #1] Matched new media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on headers {CONNECTION=close, DATE=Mon, 05 Jun 2017 22:31:25 GMT, HOST=192.168.1.6:5001, USER-AGENT=Linux/4.9.0-2-amd64, UPnP/1.0, Portable SDK for UPnP devices/1.6.19+git20160116}
DEBUG 2017-06-05 18:31:25.809 [New I/O worker #4] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:25.818 [New I/O worker #1] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:25.819 [New I/O worker #1] master is internal:net.pms.dlna.RealFile str video.mp4>/root/video.mp4
DEBUG 2017-06-05 18:31:25.910 [New I/O worker #1] Reading ThumbnailAsResource: true (default: false)
DEBUG 2017-06-05 18:31:25.910 [New I/O worker #1] Reading ForceJPGThumbnails: true (default: false)
DEBUG 2017-06-05 18:31:25.913 [New I/O worker #1] Reading CreateDLNATreeFaster: true (default: false)
DEBUG 2017-06-05 18:31:25.915 [New I/O worker #4] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:25.943 [New I/O worker #4] Reading TranscodeVideo: "MPEGTS-H264-AAC" (default: "MPEGPS-MPEG2-AC3")
DEBUG 2017-06-05 18:31:25.970 [New I/O worker #4] Reading DLNALocalizationRequired: true (default: false)
DEBUG 2017-06-05 18:31:25.970 [New I/O worker #4] Reading SeekByTime: "exclusive" (default: "false")
DEBUG 2017-06-05 18:31:25.977 [New I/O worker #1] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:25.993 [New I/O worker #2] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:26.019 [New I/O worker #2] Reading MuxNonMod4Resolution: true (default: false)
DEBUG 2017-06-05 18:31:26.023 [New I/O worker #1] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:26.044 [New I/O worker #2] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:26.048 [New I/O worker #3] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:26.084 [New I/O worker #4] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:26.184 [New I/O worker #3] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:26.283 [New I/O worker #2] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:26.327 [New I/O worker #1] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:26.427 [New I/O worker #4] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:26.527 [New I/O worker #3] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:26.545 [New I/O worker #2] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:26.646 [New I/O worker #1] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:26.746 [New I/O worker #4] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:26.761 [New I/O worker #3] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:26.863 [New I/O worker #3] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:26.962 [New I/O worker #2] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:26.981 [New I/O worker #4] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:27.080 [New I/O worker #3] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:27.181 [New I/O worker #2] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
INFO  2017-06-05 18:31:27.470 [main] Universal Media Server is now available for renderers to find
DEBUG 2017-06-05 18:31:27.545 [ffmpeg64-1-Cleanup] Stopping Unix process 6224: ffmpeg64-1
DEBUG 2017-06-05 18:31:27.681 [mplayer-0-Cleanup] Stopping Unix process 6222: mplayer-0
DEBUG 2017-06-05 18:31:37.430 [UPNP-AliveMessageSender] Sending ALIVE...
DEBUG 2017-06-05 18:31:37.517 [New I/O worker #1] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:37.618 [New I/O worker #1] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:37.717 [New I/O worker #3] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:37.732 [New I/O worker #2] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:37.833 [New I/O worker #2] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:37.934 [New I/O worker #1] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:37.969 [New I/O worker #3] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:38.069 [New I/O worker #2] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:38.171 [New I/O worker #2] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:38.237 [New I/O worker #4] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:38.338 [New I/O worker #4] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:38.438 [New I/O worker #2] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:38.480 [New I/O worker #2] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:38.579 [New I/O worker #1] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:38.679 [New I/O worker #3] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:38.755 [New I/O worker #2] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:38.856 [New I/O worker #1] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:31:38.957 [New I/O worker #4] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:32:08.957 [UPNP-AliveMessageSender] Sending ALIVE...
DEBUG 2017-06-05 18:32:09.010 [New I/O worker #3] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:32:09.110 [New I/O worker #3] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:32:09.211 [New I/O worker #1] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:32:09.268 [New I/O worker #4] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:32:09.368 [New I/O worker #3] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:32:09.469 [New I/O worker #2] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:32:09.492 [New I/O worker #1] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:32:09.593 [New I/O worker #4] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:32:09.696 [New I/O worker #3] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:32:09.768 [New I/O worker #2] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:32:09.868 [New I/O worker #1] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:32:09.968 [New I/O worker #4] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:32:10.051 [New I/O worker #3] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:32:10.151 [New I/O worker #2] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:32:10.251 [New I/O worker #1] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:32:10.266 [New I/O worker #4] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:32:10.370 [New I/O worker #3] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5
DEBUG 2017-06-05 18:32:10.473 [New I/O worker #2] Matched media renderer "Sony Xperia Z/ZL/ZQ/Z1/Z2" based on address /192.168.1.5


User avatar
Ludo
Posts: 6
Joined: Tue Jun 06, 2017 10:21 am

Re: VLC for Desktop detected as Sony Xperia

Post by Ludo » Tue Jun 13, 2017 1:15 am

Since I'm running UMS in headless mode, cannot get file by guide provided. Anyway, here's the complete debug.log. Firefox renderer seems to be detected correctly.
Attachments
debug.log
(84.93 KiB) Downloaded 34 times

User avatar
Sami32
Posts: 822
Joined: Mon Apr 11, 2016 5:09 am

Re: VLC for Desktop detected as Sony Xperia

Post by Sami32 » Tue Jun 13, 2017 2:49 am

Make sure that you run only one instance, as running UMS as a service and a GUI instance at the same time will not work, without any issues at least.

Sony xperia is choosen if nothing better is found, as it's the more similar to your Linux "amd64" string. Yes, this renderer have a weak recognition string, IMO.
To avoid that, you can delete or change the extension of this file in your "renderers" subfolder.
Or you can modify your ums.conf file using the following lines:
# Selected renderers
# ------------------
# A comma-separated list of renderer configurations to load by renderer name as
# defined in the configuration file. Two special values exist, "All renderers"
# and "None". Group names made of the first word in the renderer name can be
# used to specify all renderers in that group, e.g. "Panasonic".
# Example: Yamaha RX-A1010, Panasonic
# Default: "All renderers"
selected_renderers =

# Default renderer when automatic detection fails
# -----------------------------------------------
# UMS can recognize many renderers automatically. Sometimes a renderer will
# connect which UMS does not recognize. This option defines which renderer UMS
# should assume.
# Default: "", which means UMS will assume the "Unknown renderer".
renderer_default =

# Force default renderer (disable automatic detection)
# ----------------------------------------------------
# By default UMS tries to automatically detect what renderers try to connect
# to it. When this is true, UMS will assume any renderer that connects is the
# default renderer.
# Default: false
renderer_force_default =
Or you can add this line to your VLC rendererer:

Code: Select all

LoadingPriority = 2
Note: Your MPlayer install is problematic:
INFO 2017-06-12 09:08:49.341 [mplayer-0] Process mplayer has a return code of 2! Maybe an error occurred... check the log file
DEBUG 2017-06-12 09:09:37.014 [mplayer-2-1] [cplayer] Exiting... (Fatal error)
INFO 2017-06-12 09:09:37.023 [pool-8-thread-2] Process mplayer has a return code of 1! Maybe an error occurred... check the log file
UMS 6.7.1 fixed DVD issue, but it need a working MPlayer installed ;)

User avatar
Ludo
Posts: 6
Joined: Tue Jun 06, 2017 10:21 am

Re: VLC for Desktop detected as Sony Xperia

Post by Ludo » Tue Jun 13, 2017 3:29 am

Both machines guest and host are on the same network, 192.168.0.8 and subsequently 192.168.0.9. I can discover UMS in VLC but it's not working correctly, so I don't think this is a firewall issue. And I'm running only one instance.

My UMS.conf renderer related part now looks like this

Code: Select all

# ------------------
# A comma-separated list of renderer configurations to load by renderer name as
# defined in the configuration file. Two special values exist, "All renderers"
# and "None". Group names made of the first word in the renderer name can be
# used to specify all renderers in that group, e.g. "Panasonic".
# Example: Yamaha RX-A1010, Panasonic
# Default: "All renderers"
selected_renderers = VLC for desktop

# Default renderer when automatic detection fails
# -----------------------------------------------
# UMS can recognize many renderers automatically. Sometimes a renderer will
# connect which UMS does not recognize. This option defines which renderer UMS
# should assume.
# Default: "", which means UMS will assume the "Unknown renderer".
renderer_default = VLC for desktop
UMS is correctly loading only VLC for desktop renderer according to info messages, but when trying to connect in my VLC it doesn't work at all. When Xperia renderer was detected, it was at least possible to start a transcoded movie, now it doesn't even load database. So to me it seems it's an issue with renderer detection string and renderer config or UMS is not even working with my VLC.

Mplayer is now installed correctly, but didn't solve anything.

User avatar
Sami32
Posts: 822
Joined: Mon Apr 11, 2016 5:09 am

Re: VLC for Desktop detected as Sony Xperia

Post by Sami32 » Tue Jun 13, 2017 3:37 am

MPlayer note, have nothing to do with your issue; i only saw that you was using DVD and will have issue, so i take time to advertise you.

Could you provide a new log with your new ums.conf change ? Thanks.

Yes, it's why i deleted my firewall comment just after having posted it ;)

User avatar
Ludo
Posts: 6
Joined: Tue Jun 06, 2017 10:21 am

Re: VLC for Desktop detected as Sony Xperia

Post by Ludo » Tue Jun 13, 2017 3:47 am

Trying 6.7.1 version, reporting recognized VLC for desktop but not able to open server in VLC player.

EDIT: tried also Gerbera (former MediaTomb) media server now and there everything seems to work fine (discovery, showing database, playing video, seek, ...).
Attachments
debug.log
(200.09 KiB) Downloaded 32 times

User avatar
Sami32
Posts: 822
Joined: Mon Apr 11, 2016 5:09 am

Re: VLC for Desktop detected as Sony Xperia

Post by Sami32 » Tue Jun 13, 2017 4:00 am

Sorry, as i'm not an english native, i'm not sure to understood you.
Do you mean that you cannot see UMS in VLC, right ?

As a side note: Don't forget that you'll not being able to see encrypted DVD if you don't install libdvdcss(2) library.

User avatar
Ludo
Posts: 6
Joined: Tue Jun 06, 2017 10:21 am

Re: VLC for Desktop detected as Sony Xperia

Post by Ludo » Tue Jun 13, 2017 4:06 am

I can see UMS in VLC player. But I cannot play anything from it now.

When it was detecting Xperia renderer - playing transcoded, not possible to seek, ...
When set in config specifically to VLC for desktop renderer - i see server, don't see content, cannot play at all

Here's silent UMS

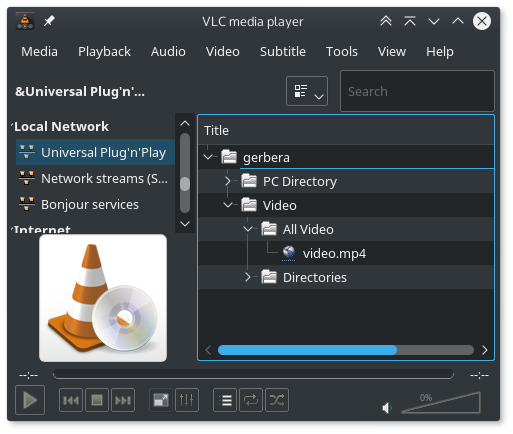

Here's what I see when running Gerbera

User avatar
Sami32
Posts: 822
Joined: Mon Apr 11, 2016 5:09 am

Re: VLC for Desktop detected as Sony Xperia

Post by Sami32 » Tue Jun 13, 2017 4:17 am

Thank you very much for the images 8-)

I hope that you use VLC 3.0.0 beta, as the others are weak when it come to UPnP/DLNA, and our own DLNA implementation being weak, the 3.0.0 should work.
Sometime it can take until 12 mn to display the UMS tree with the 2.x.x version!

I'll compare your logs later.

Post Reply
